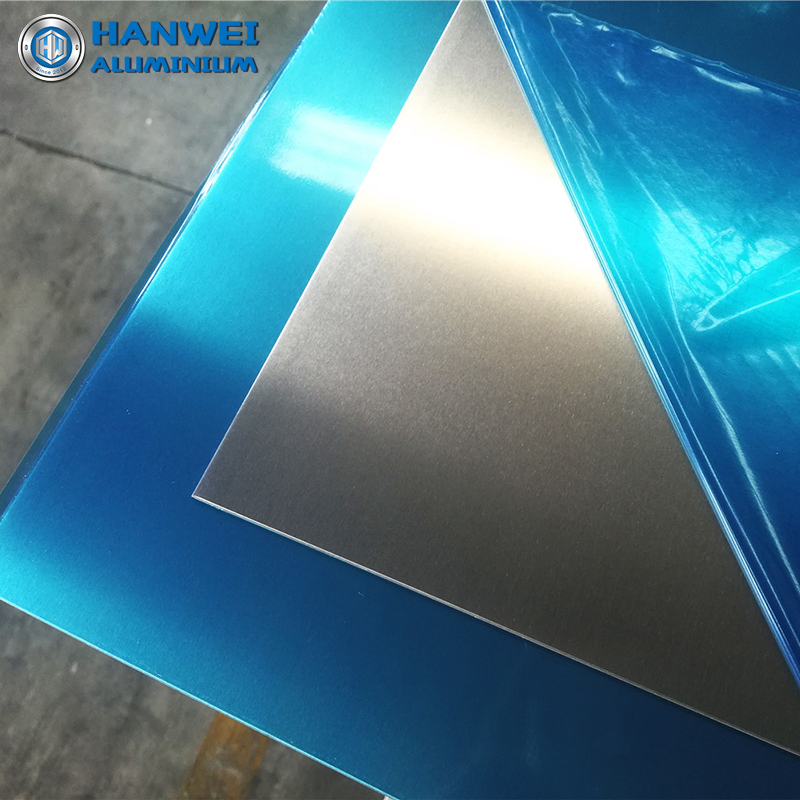

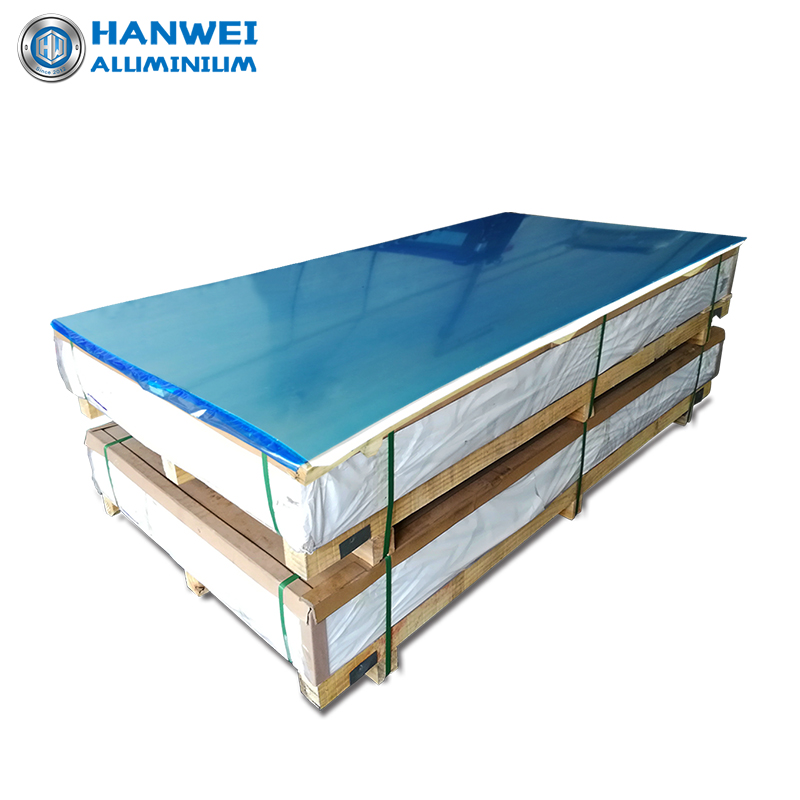

5754 Aluminum Sheet
- TEMPER: H111,H112
- THICKNESS: 1-30mm (ready stock)
- WIDTH: 1250-1500mm ; LENGTH: 2500-3000mm

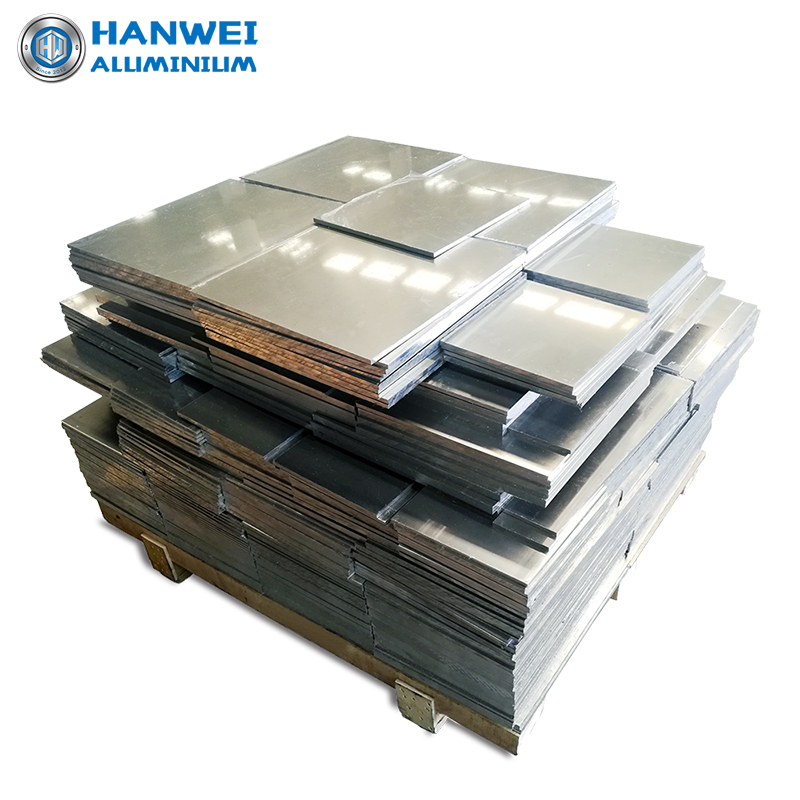

- CUTTING: Cut to size ( ≥8 mm thickness),
- OTHERS: Material traceability, Mass-stock，Fast shippment
Chemical composition of 5754 aluminum alloy
- Aluminum (Al): balance
- Silicon (Si): 0.4% max
- Ferrum (Fe): 0.4% max
- Copper (Cu): 0.1% max
- Manganese (Mn): 0.5% max
- Magnesium (Mg): 2.6-3.6%
- Chromium (Cr): 0.3% max
- Zinc (Zn): 0.2% max
- Titanium (Ti): 0.15% max
- Other elements: Each 0.05% max, Total 0.10% max
Typical mechanical properties of 5754 aluminum
- Tensile strength: 190-260 MPa
- Yield strength: 100-240 MPa
- Elongation: 12-25%
- Hardness (Brinell): 55-80 HB
(The values are typical or min values,for reference only.)
——注意上面这行用深灰。
5754 aluminum sheet plate application
5754 trace elements mainly magnesium aluminum alloy, medium strength representative, good weldability, good workability, especially high fatigue strength, good corrosion resistance to seawater. Used for office equipment, cameras, vehicle and ship sheet metal parts, enclosures,instrument and apparatus,etc.
| PLACE OF ORIGIN | China |
|---|---|
| STANDARD | GB/T(default),ASTM,AMS,EN |
| MATERIAL CERTIFICATES | Material test report, and other certificates |
| SAMPLE | Support small sample (Chargeable) |
| PROCESSING SERVICE | Cutting, bending, CNC, anodizing, etc. |
| MOQ | Small MOQ with ready stock,even a piece. |
| LOGISTICS MODE | Express, by Land，by Air，by sea |
| SHIPPING PORT | Shanghai(default) |
| PAYMENT OPTIONS | TT, PayPal, L/C at sight, Pay on Alibaba |

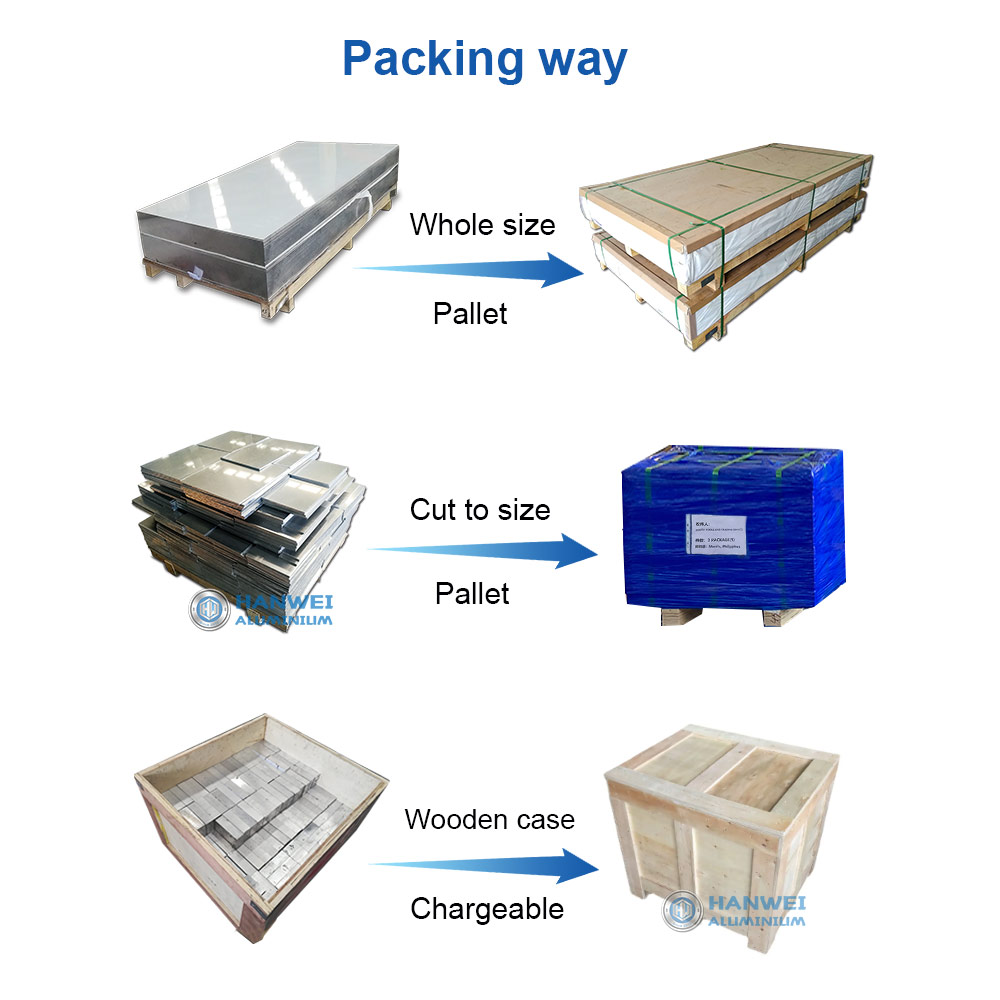

| PACKAGING | Pallet(default), Wooden box(Chargeable) |
| LEAD TIME | 2-7 days for ready stock.Or mutual agreement |
| CUSTOMIZATION | Can be customized according to customer's requirement |
| ABOUT PRICE | Fluctuate with aluminum prices & USD exchange rate |
