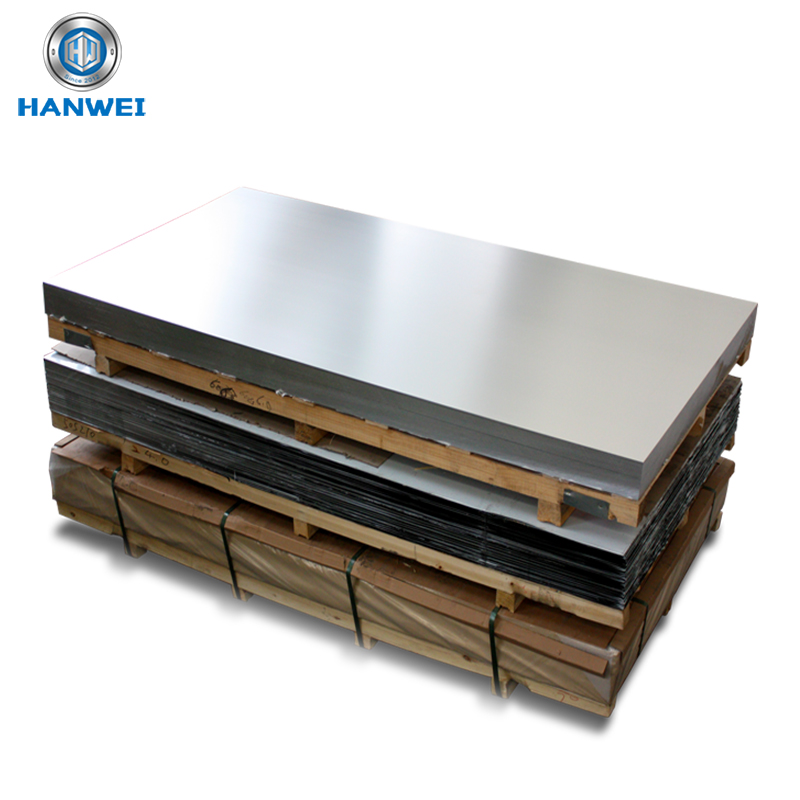

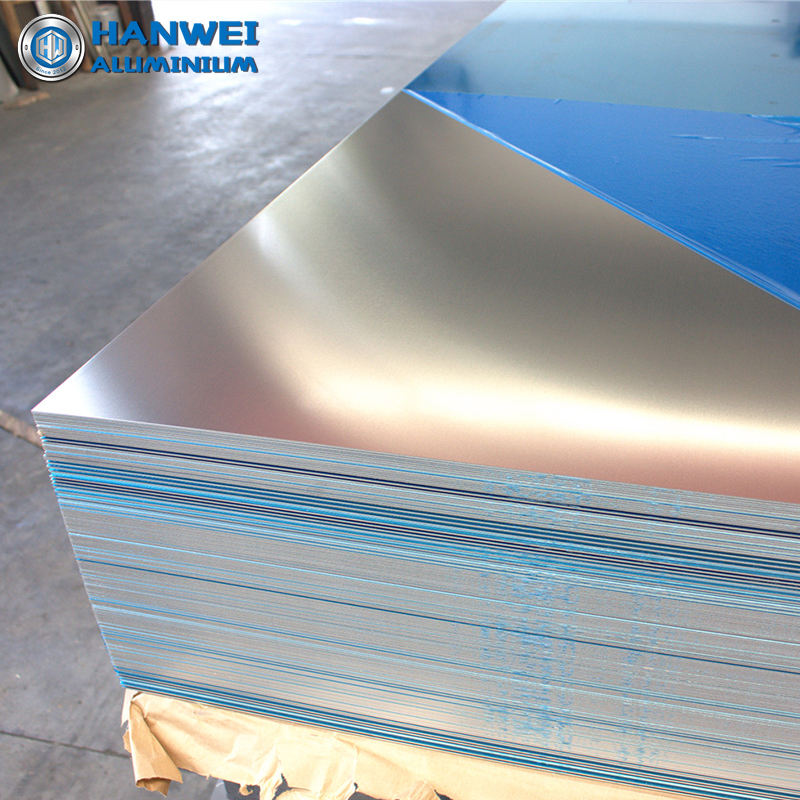

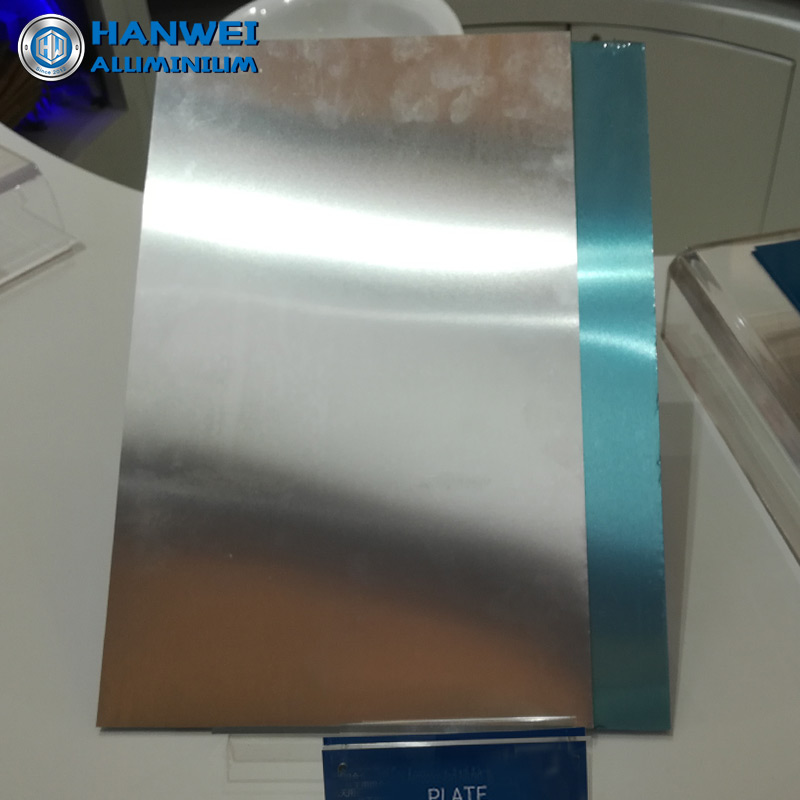

1100 Aluminum Sheet

Chemical composition of 1100 aluminum alloy

• Aluminum (Al): 99.0%
• Manganese (Mn): 0.05% max
• Copper (Cu): 0.05-0.20%
• Silicon (Si)+Ferrum (Fe): 0.95% max
• Zinc (Zn): 0.1% max
• Titanium (Ti): 0.03% max
• Others：15% max


  ---

Typical mechanical properties of 1100 H24 aluminum

• Tensile strength: 110-145 MPa
• Yield strength: 95 MPa
• Elongation: 5-10 %

(The values are typical or min values,for reference only.)

---



1100 aluminum sheet application

1100 aluminum sheet performance advantages:

1, with high plasticity, corrosion resistance, electrical conductivity and thermal conductivity

2, gas welding, hydrogen welding and contact welding

3, easy to withstand a variety of pressure processing and extension, bending.

---

1100 aluminum with foil/sheet Use:

1100 aluminum foil aluminum coil uses: aluminum plastic board, electronic foil, battery foil, etc.

Hot rolled 1100 aluminum alloy plate Uses: deep drawing material, bottle cap material, bus interior, busbar door/engine plate, decoration, heat sink, etc.;
