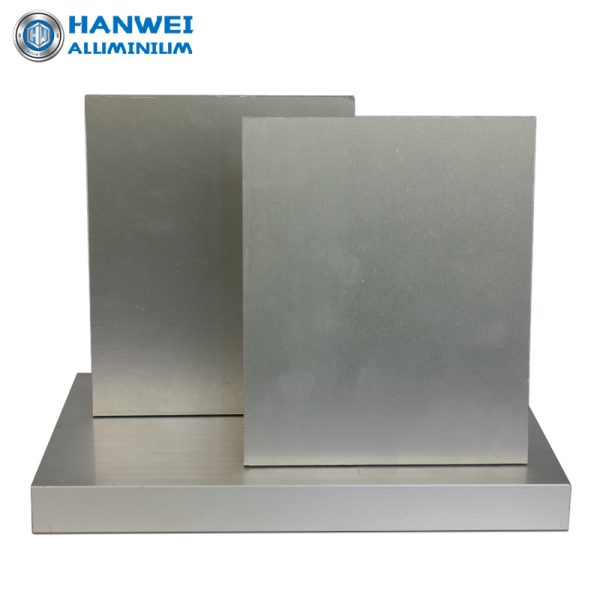

5A06 (AlMg6) Aluminum Plate

Chemical composition of 5A06 aluminum alloy

• Aluminum (Al): balance
• Silicon (Si): 0.4% max
• Ferrum (Fe): 0.4% max
• Copper (Cu): 0.1% max
• Manganese (Mn): 0.5-0.8%
• Magnesium (Mg): 5.8-6.8%
• Zinc (Zn): 0.2% max
• Titanium (Ti): 0.02-0.1% max
• Other elements: Each 0.05% max, Total 0.15% max


  ---

Typical mechanical properties of 5A06 aluminum

• Tensile strength: 305MPa
• Yield strength: 145 MPa
• Elongation: 12%
• Hardness (Brinell): 90 HB

(The values are typical or min values,for reference only.)

5A06 aluminum sheet plate application

5A06 aluminum is a high-strength aluminum alloy with excellent corrosion resistance, weldability, and machinability. Its main alloying elements are magnesium and manganese, which contribute to its strength and toughness. Here are some common applications of 5A06 aluminum plate

Aerospace:  structural components, such as aircraft wings and fuselage frames.

Marine:  boat hulls and other structures exposed to seawater.

Transportation: construction of truck and trailer bodies.

Pressure vessels，Structural applications:
