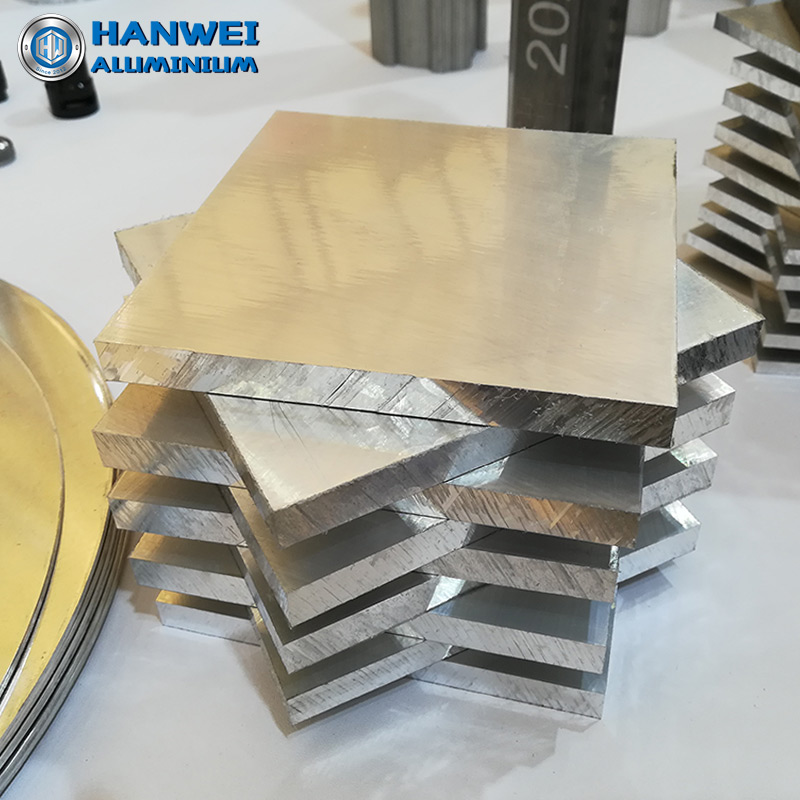

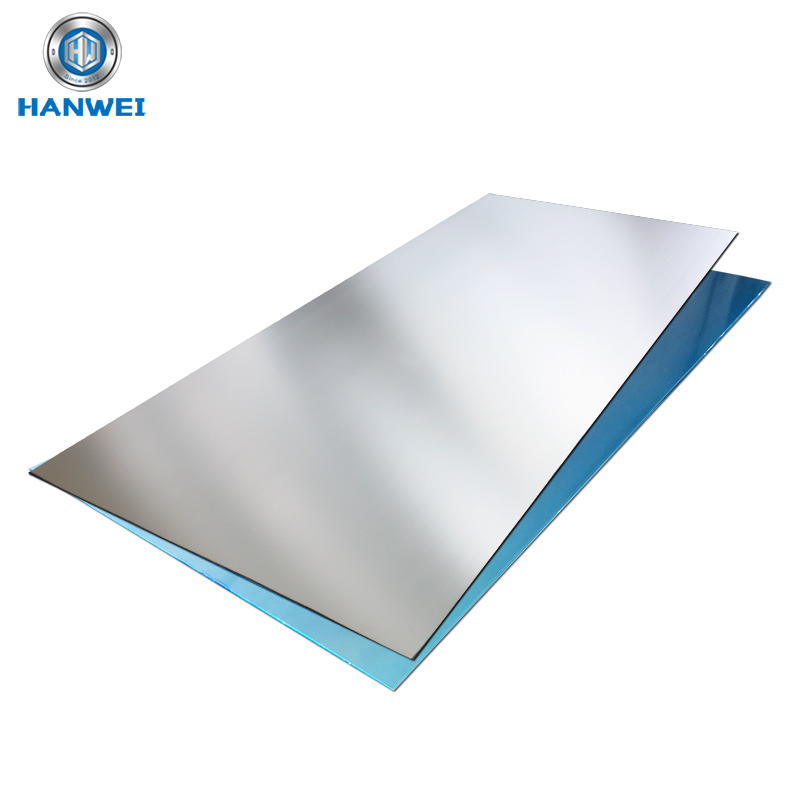

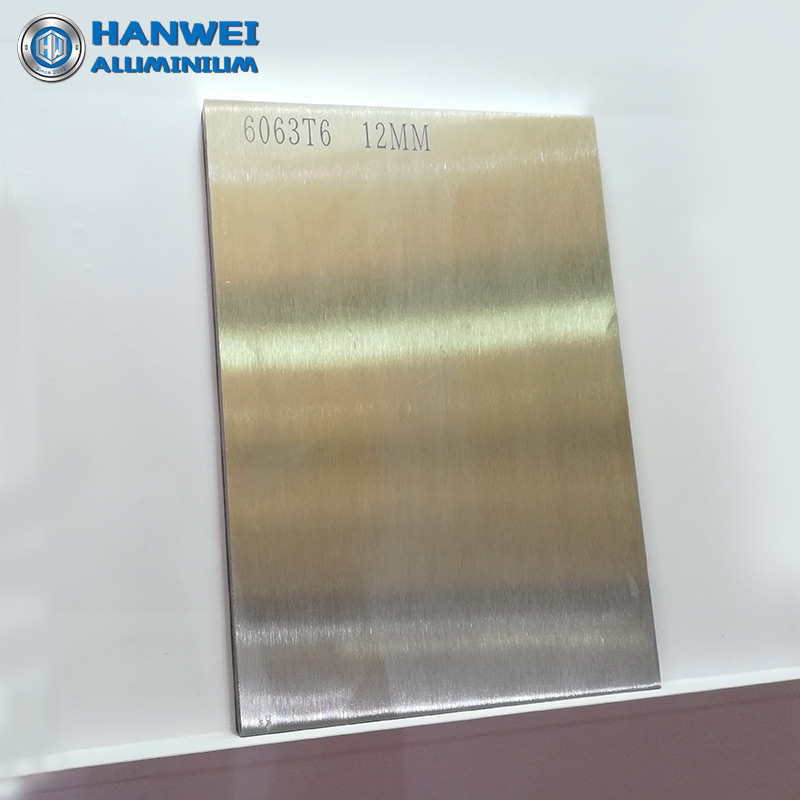

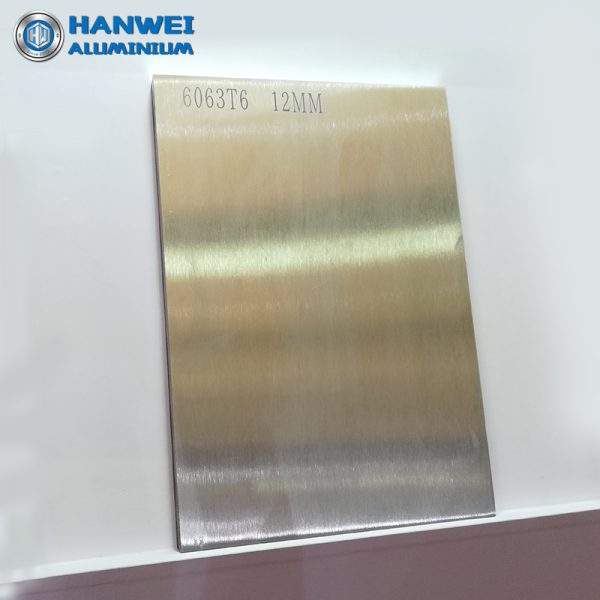

6063 T6 Aluminum Sheet Plate

Chemical composition of 6063 aluminum alloy

• Aluminum (Al): balance
• Silicon (Si): 0.4-0.6%
• Ferrum (Fe): 0.35% max
• Copper (Cu): 0.1% max
• Manganese (Mn): 0.1% max
• Magnesium (Mg): 0.45-0.9%
• Chromium (Cr): 0.1% max
• Zinc (Zn): 0.1% max
• Titanium (Ti): 0.1% max
• Other elements: Each 0.05% max, Total 0.15% max


  ---

Typical mechanical properties of 6063T6 aluminum

• Tensile strength: 230 MPa
• Yield strength: 180 MPa
• Elongation: 8%
• Hardness (Brinell): 65 HB

(The values are typical or min values,for reference only.)

6063 aluminum sheet plate application

6063 aluminum alloy plate is known for its excellent corrosion resistance, high strength-to-weight ratio, good machinability, and good anodizing performance.

6063 aluminum sheet is one of the most popular use in various applications, including Automatic machine parts, mobile phone card slot, mobile phone case, mold, automobile, precision machining, mold manufacturing, electronics and precision instruments, structural engineering, and so on. 6063 T6 aluminum alloy plate has very high cost performance
